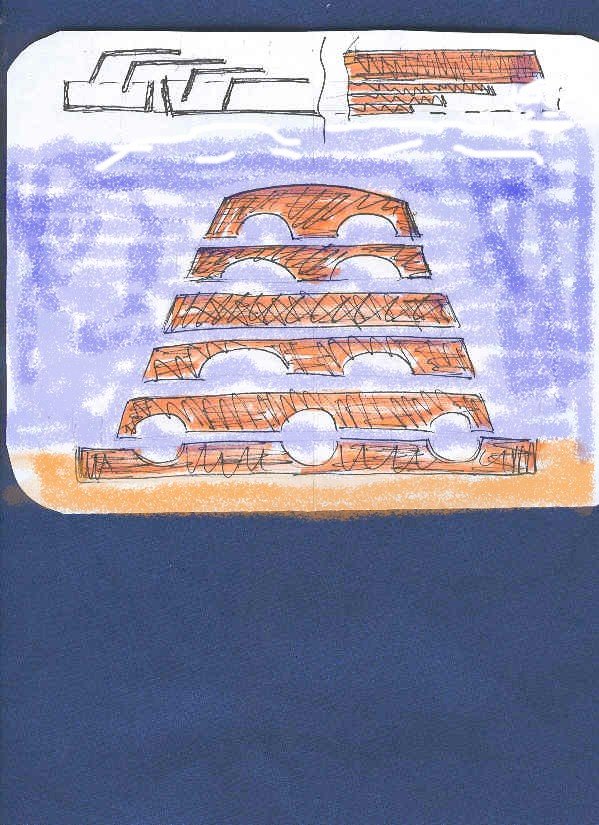

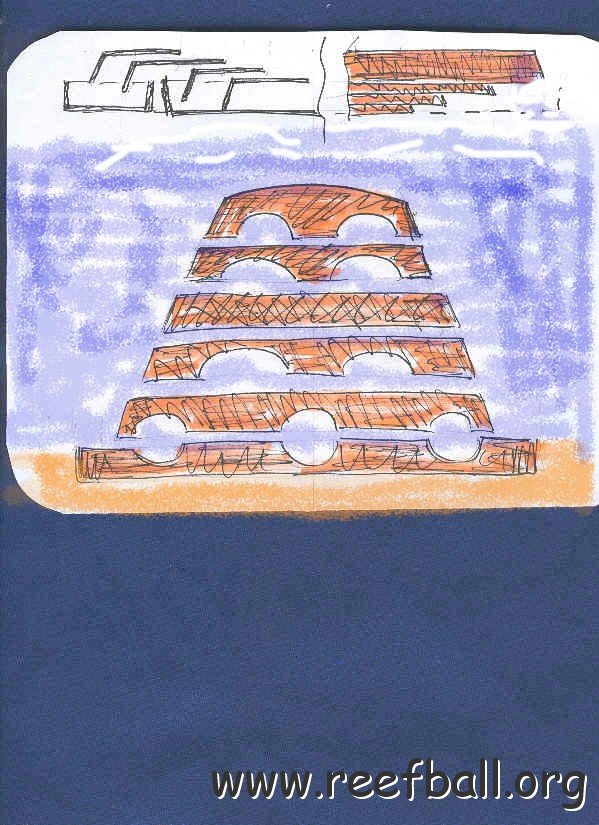

From: "don hourahane" To: "Todd Barber" Subject: TRC. Cone / Ball? Date: Sunday, November 03, 2002 1:46 AM TRC. is a new material, bringing with it new opportunities, the sketch illustrates how it can be made into a kit for a reef, one that gets "put together " rather than being cast. Wet concrete work on site iis reduced to decoration and the casting of the heavy [about 75% of the total mass] base ring, into a permanent TRC. shutter. The cone elements are held together [and spaced] by the use of either pultruded FRG rods coated with CemForce or concrete matrixed glass rods which get bonded into to the discs that are used to create the cone or ball. The unit shown ships thin / light, remains light as it becomes LARGE, until the base ring is cast to add mass. The completed can make use of a Polyform float if required, or can be towed on a skid platform which tilts to allow it to slide off. Its construction will have it sink as though it has a parachute fitted.... TexCell mouldings will be about the same density as wood, the shipping weight about the same as three sheets of [4 mm] plywood up to 4 foot, 50 % more for larger reefs. Probably less than the weight of an FRG mould to make a Reefball of a similar size, there are two possibilities 1/ ship complete units, with exception concrete for base, 2/ ship textile skeletons, plus FRG moulds for conversion on site. The aim is to be make TRC. technology available to companies with an established market. Don's Phone - 02711-763 4794 in South Africa
